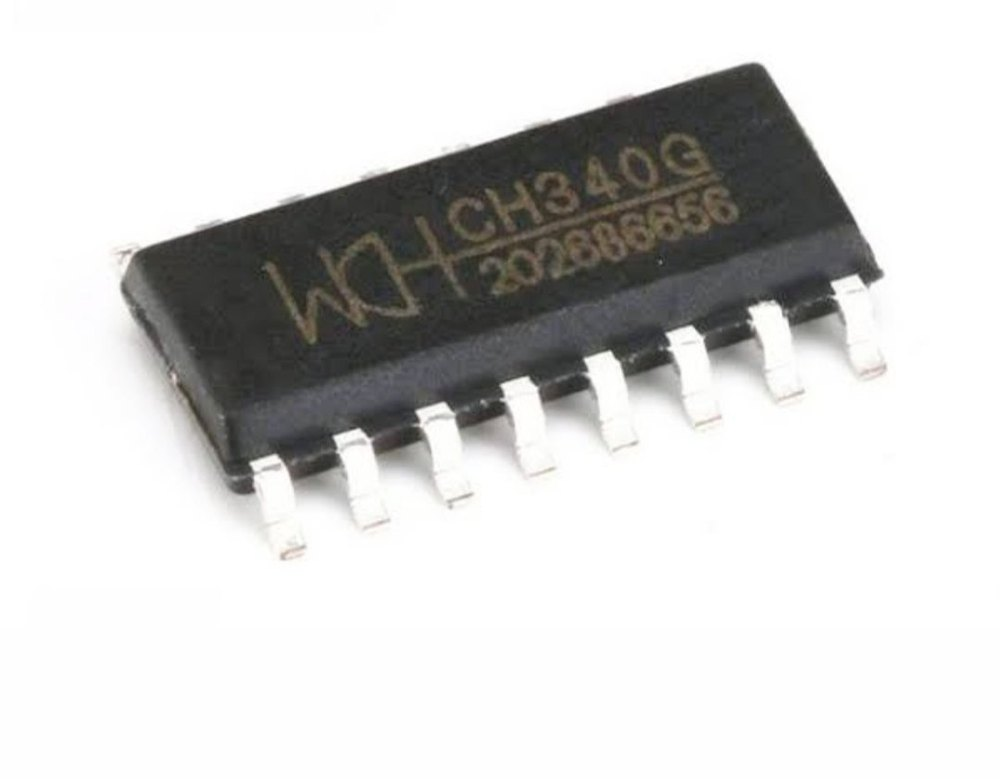

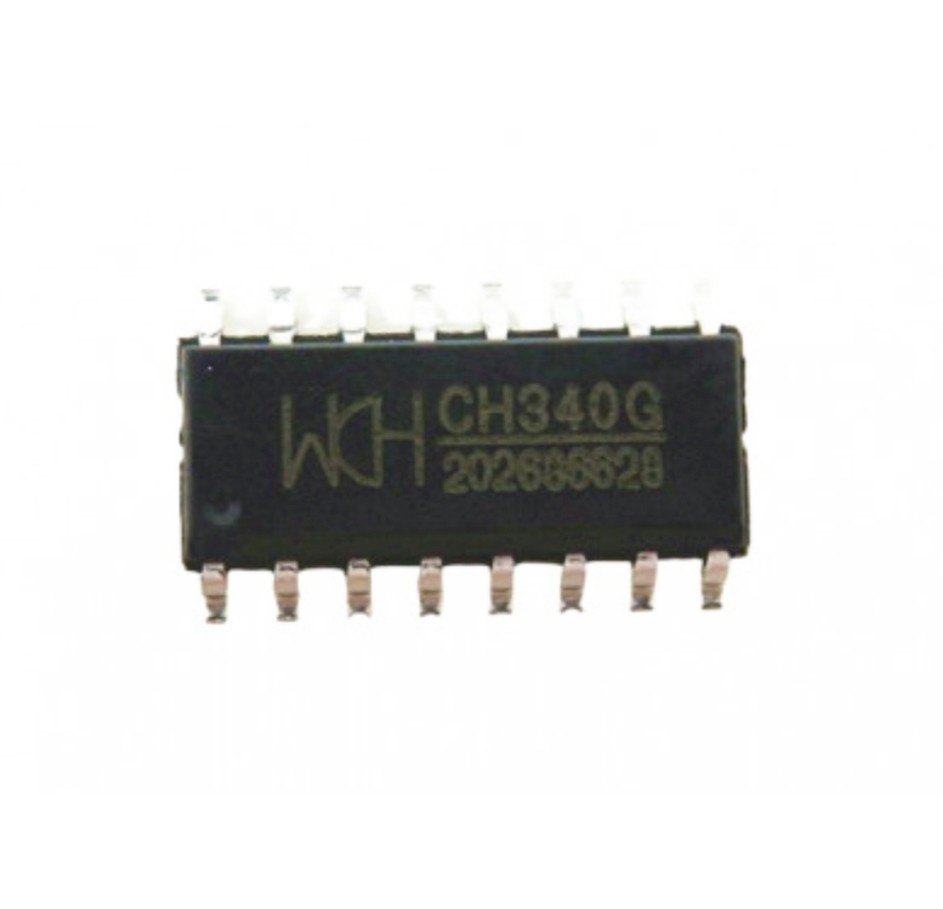

CH340G SOIC16 USB to Serial TTL-RS232 Converter IC | USB to UART Interface Chip

The CH340G SOIC16 USB to Serial TTL-RS232 Converter IC is a cost-effective, full-speed USB to UART bridge chip supporting baud rates up to 2 Mbps. Perfect for upgrading serial devices to USB or expanding microcontroller communication capabilities.

Specifications:

• Chip Type: USB to Serial Converter (UART Bridge)

• Package Type: SOIC-16 (SMD)

• USB Interface: Full-speed USB 2.0 compliant

• Serial Interface: Hardware full-duplex UART

• Baud Rate Range: 50 bps to 2 Mbps

• MODEM Signal Support: RTS, DTR, DCD, RI, DSR, CTS

• Supported Interfaces (via level conversion): RS232, RS485, RS422

• Infrared Support: IrDA SIR standard (2400 bps to 115200 bps)

• Voltage Compatibility: 5V and 3.3V source supported

• Software Compatibility: Compatible with CH341 drivers

• OS Support: Works with Windows serial applications

• Power Consumption: Low power consumption, RoHS compliant

• Applications: USB to UART bridging, serial device upgrades, Arduino communication, embedded development

• Included in Package: 1 x CH340G SOIC16 USB to Serial TTL-RS232 Converter IC
