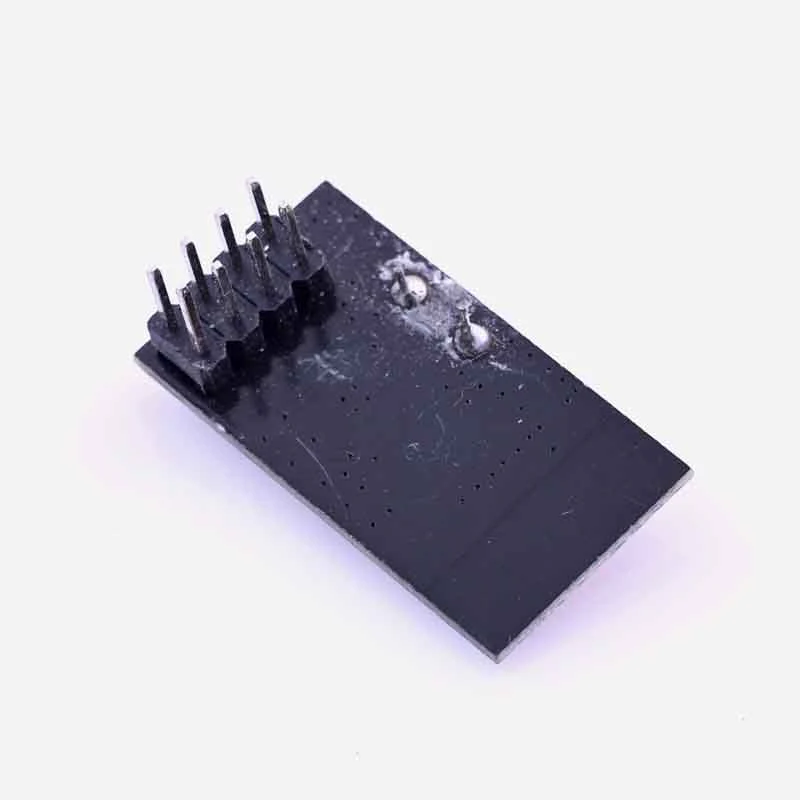

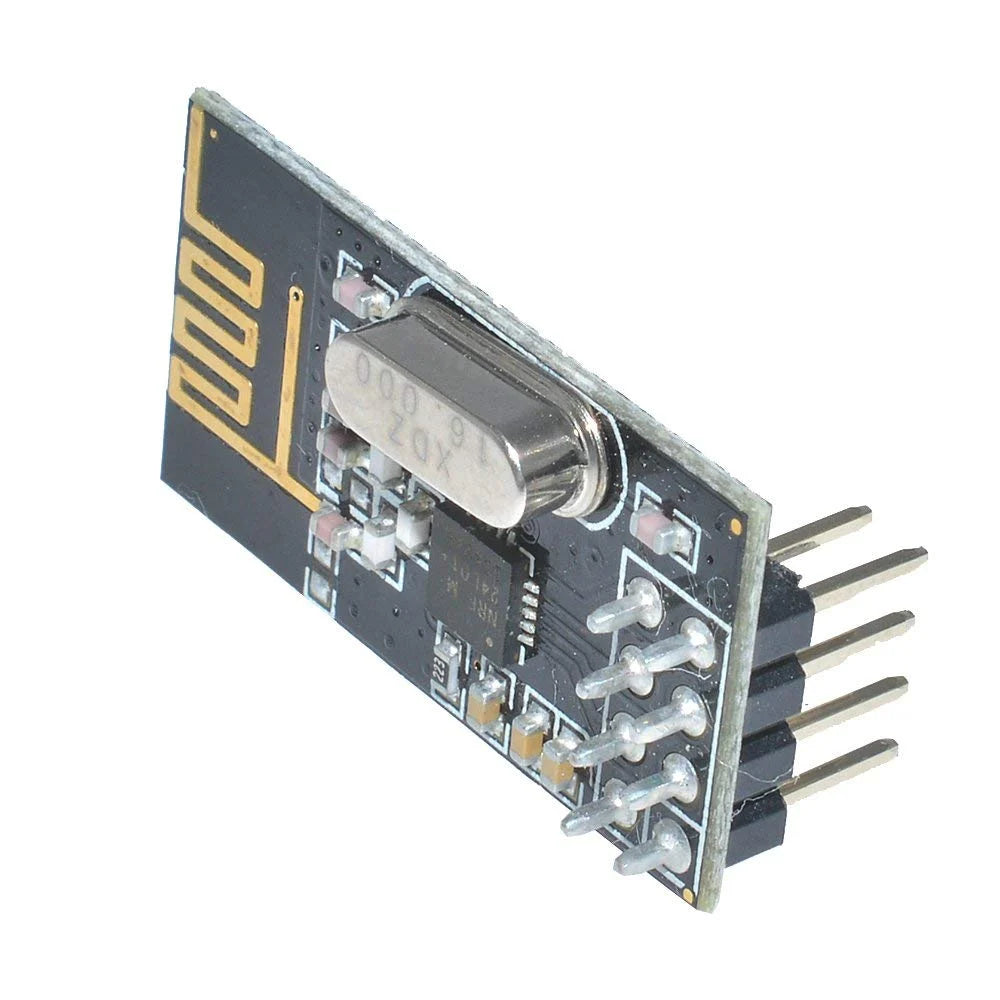

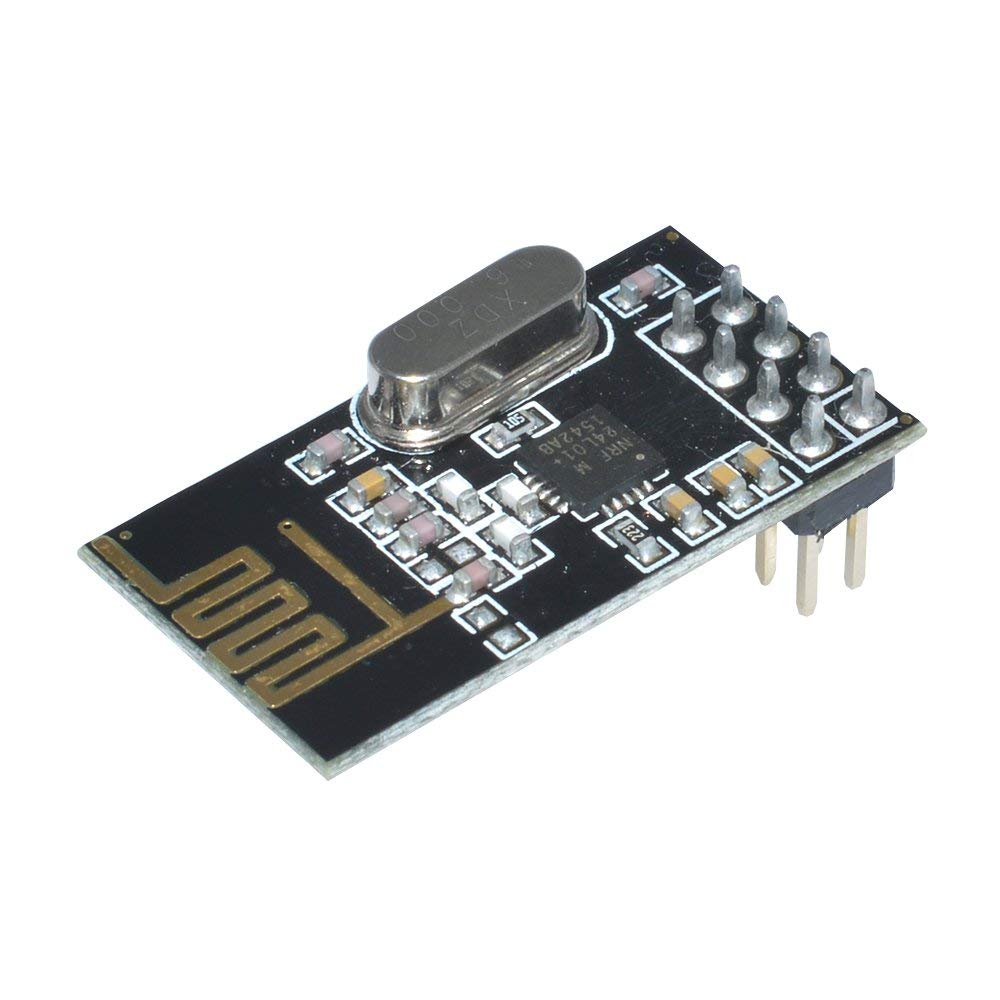

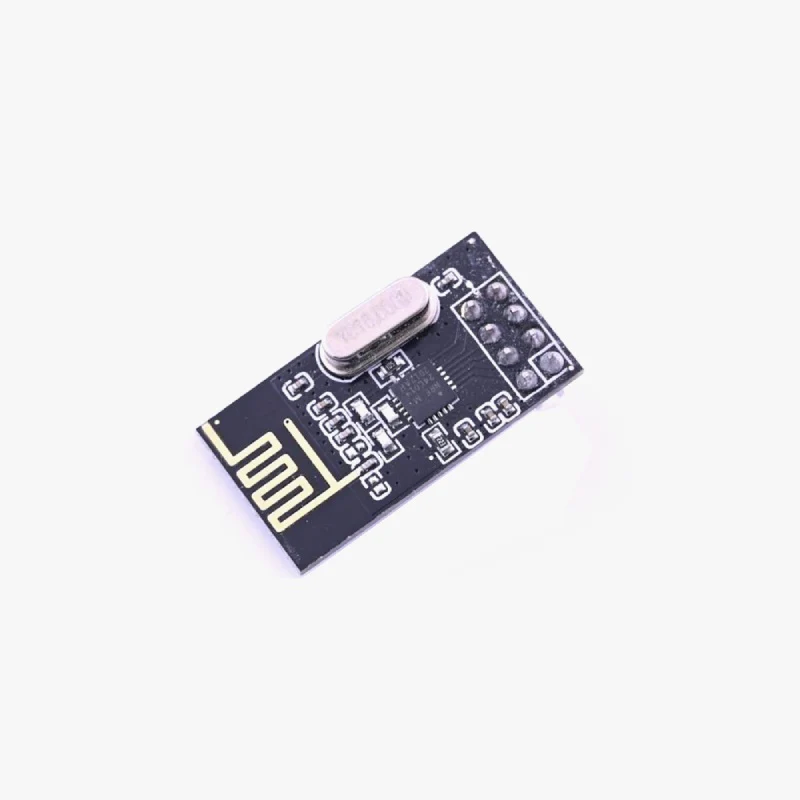

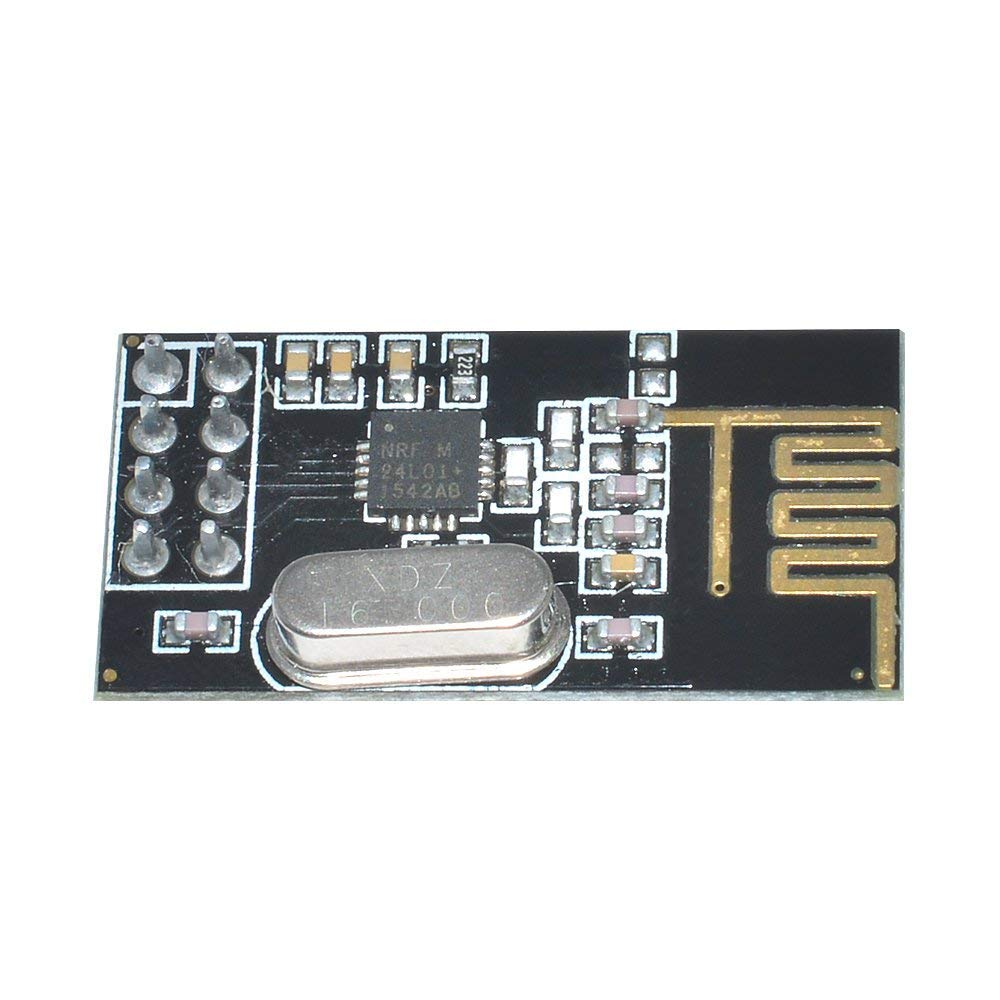

NRF24L01 2.4F RF Transceiver Module | Long-Range Wireless Communication

Enhance your wireless communication projects with the NRF24L01 2.4F RF Transceiver Module—offering up to 200 meters range, ultra-low power use, 125 channels, and high-speed SPI interface. Compatible with Arduino, Raspberry Pi, and more.

Specifications:

• Operating Voltage: 1.9V to 3.6V (Low Power Consumption)

• I/O Input Voltage: Accepts 5V logic levels

• Frequency Range: 2.4GHz ISM Band

• Wireless Data Rate: 1 Mbps or 2 Mbps

• Communication Interface: SPI (0 to 8 Mbps supported)

• Transmit Power: +0 dBm

• Transmission Distance: Up to 100 meters (in open outdoor conditions)

• Channels: 125 selectable frequency channels (for frequency hopping)

• Multi-point Communication: Supported

• Antenna: On-board 2.4GHz PCB antenna

• Dimensions: 30 mm x 15 mm x 10 mm

• Weight: 30 grams

• Built-in Features: Internal FIFO buffers, protocol engine, and baseband processing

• Compatibility: Arduino, Raspberry Pi, AVR, ARM, STM32, NodeMCU, and other microcontrollers
